Hard Старые видеокарты

1996-й год и AGP?
Про остальное не упоминаю. Блин, мы становимся свидетелями какого-то мифотворчества.



В WinXP Radeon 9600 XT греется в простое до 40 гр., а в Win98 - до 51 гр..



@BrainRipper, в чем видите причину?



@Thomas Wolfe, в разной модели драйверов под эти ОС.



а если копать глубже? Мне интересно было бы понять механику процесса.



Продолжение тестирования влияния TruForm на производительность.
Старые видеокарты
Процессор тот же (P4 3 ГГц/1M/800 HT), видеокарта Radeon 9100 64 Мб 128-бит (250/400 МГц), WinXP, Catalyst 6.5.
Рендерер по-прежнему OpenGL.
Первые две строчки с результатами - без TruForm, две вторые - с ней.

AF off
Started playing demo: Demos\auto-demo0003.dem
Originally recorded: 5619 frames in 47.0 seconds => 119.7 FPS average.
Without excessive peaks: 5470 frames in 44.8 seconds => 122.1 FPS average.
Originally recorded: 1727 frames in 47.0 seconds => 36.8 FPS average.
Without excessive peaks: 1663 frames in 44.7 seconds => 37.2 FPS average.

AF 16x
Started playing demo: Demos\auto-demo0003.dem
Originally recorded: 4424 frames in 47.0 seconds => 94.2 FPS average.
Without excessive peaks: 4344 frames in 45.3 seconds => 95.9 FPS average.
Originally recorded: 1587 frames in 47.0 seconds => 33.8 FPS average.
Without excessive peaks: 1520 frames in 44.4 seconds => 34.3 FPS average.

Там тестирование на Radeon 8500 со слабым процессором: Старые видеокарты



A S3 Savage IX 8МБ на что способна в плане 3д игр? Какие игры пойдут 1024х768?



А пробовали прогнать тест на каком нибудь Catalyst 3.7, где еще не были объединены вкладки OGL и D3D? А поиграться с отключением/включением SMT(HTT) пробовали? )



Это не от драйвера зависит, а от ключа в реестре для контрольной панели.
"3D"=hex:01,00,00,00

Разделение/объединение вкладок в одну никак не отражается на производительности.

Когда я тестировал Serious Sam с GeForce FX 5200, отключение HT не давало изменений в fps.



FX5200 карта начального уровня. Там просто нечему терять производительность. )



@VintRus, ошибаетесь.



Может и так. Но я привык сам все проверять. Мой P4+865PE+8500LE временно отдыхает, пока я пинаю Socket 5 и Pentium 90. Позже я к вопросу TruForm еще вернусь.



@VintRus, FX 5200 с 64-битной шиной видеопамяти я гонял в т.ч. в 640x480x32 - в этом режиме в процессорозависимых демках игра упирается в проц.

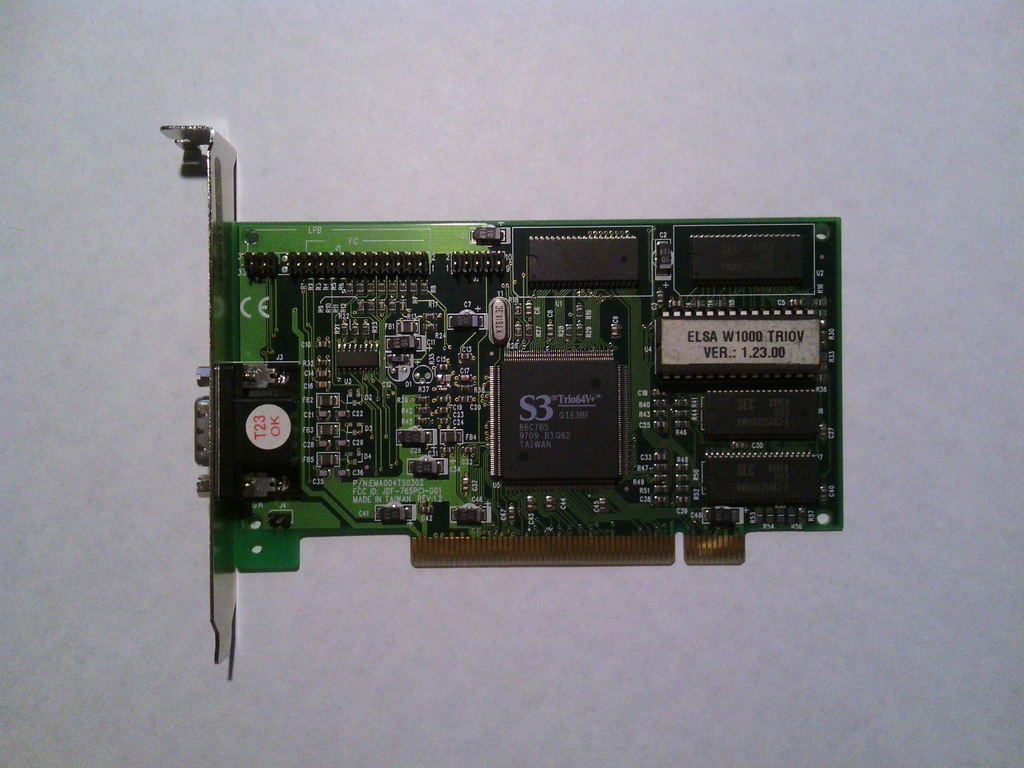

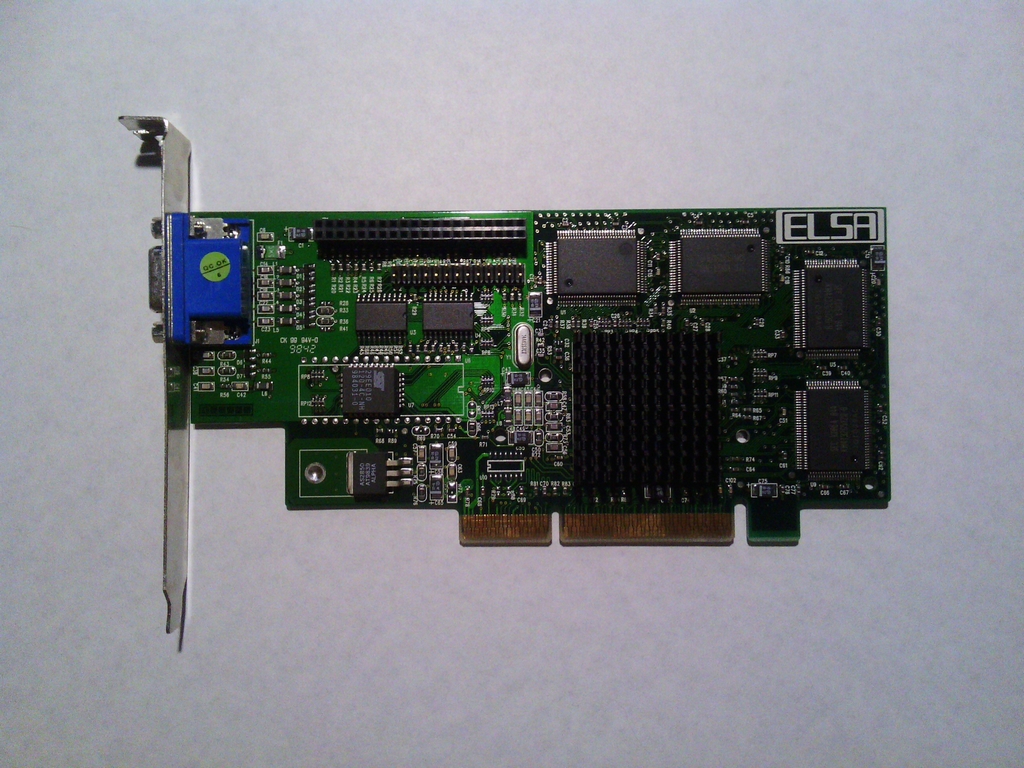

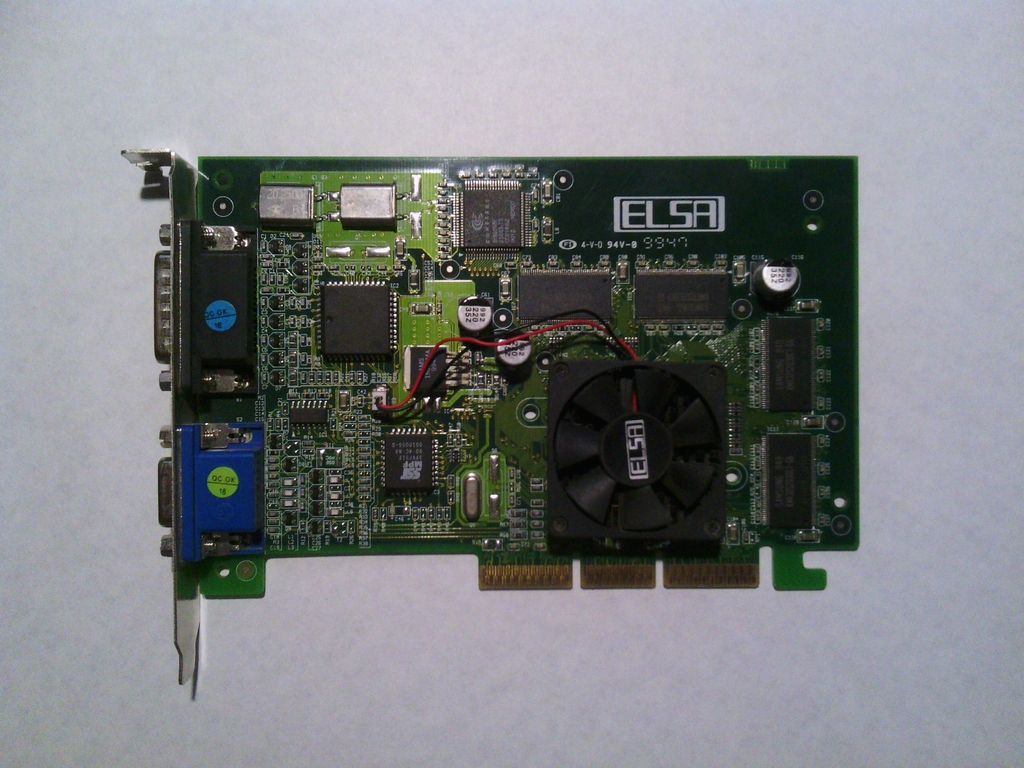

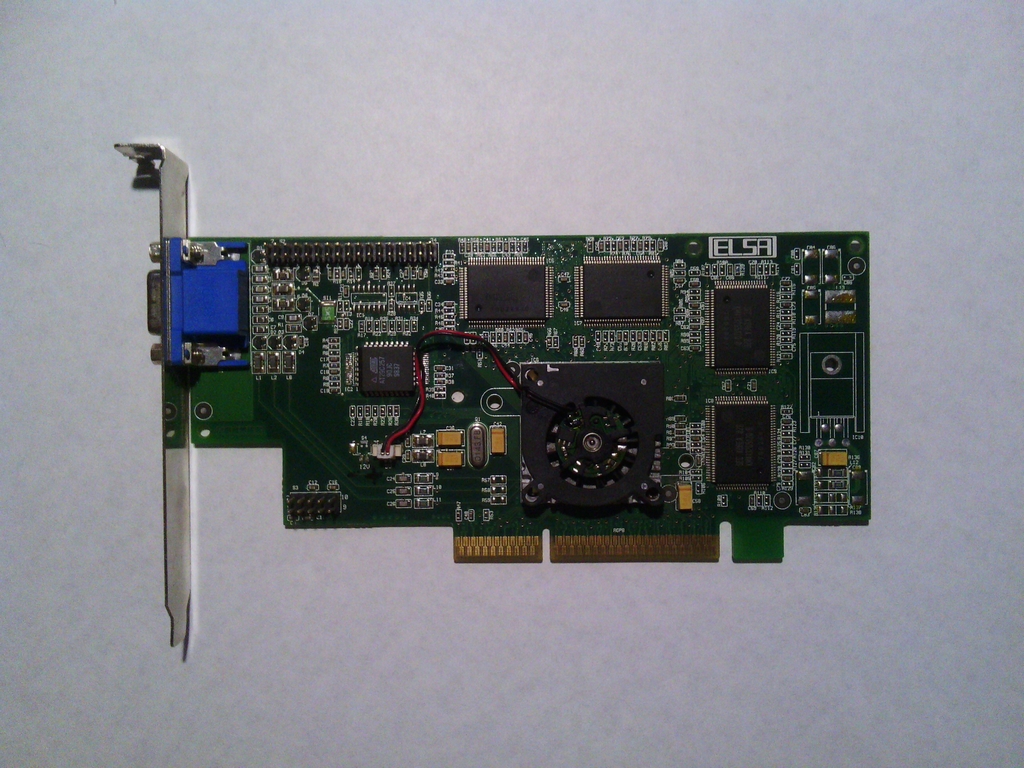

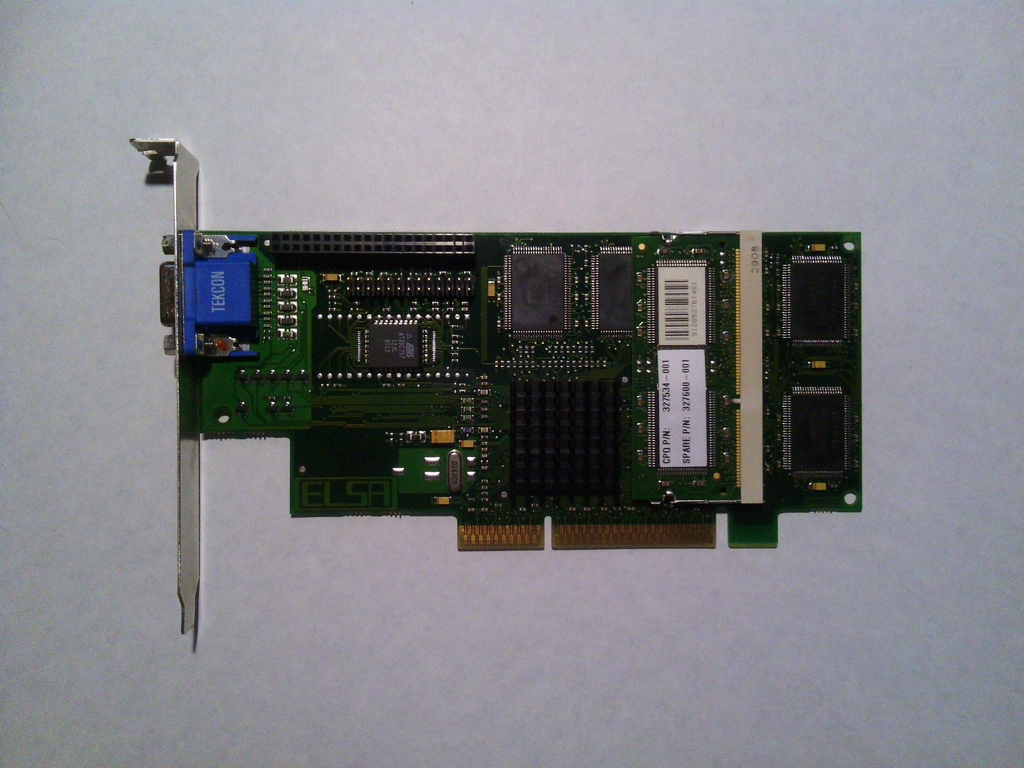

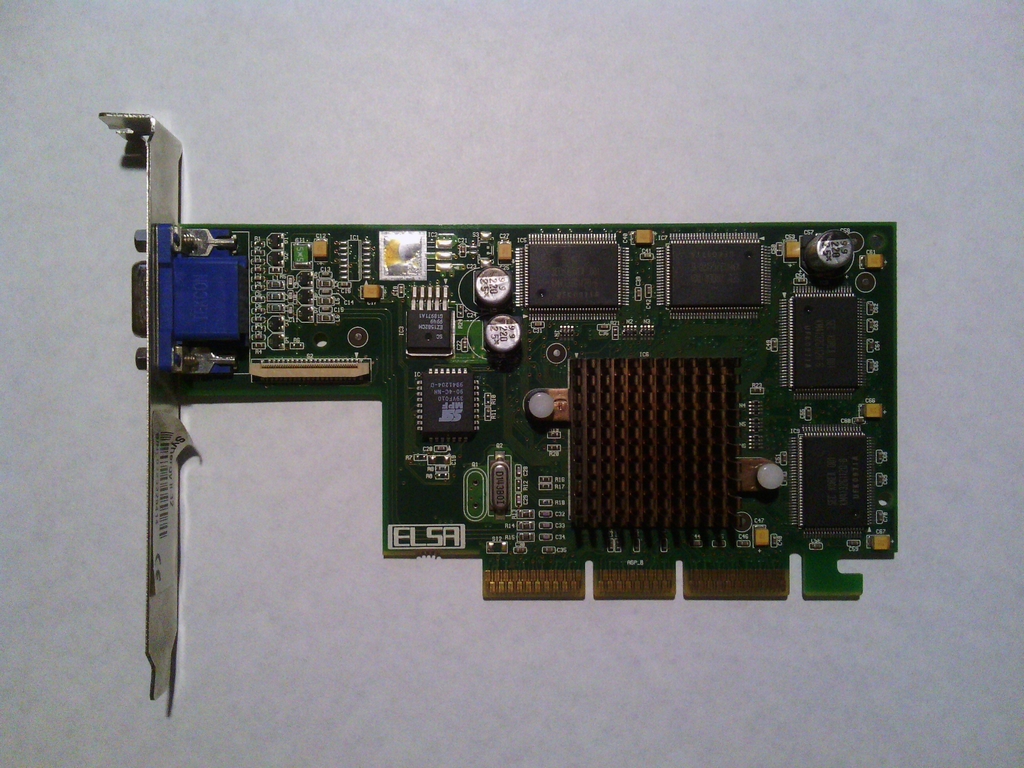

ELSA, происходящая из Аахена, города, известного, помимо прочего, замечательным шоколадом и прочими сладостями Компания, чья продукция в основе всегда отличалась качеством исполнения. Ранние карты выпускались во Франции, поздние - в более традиционных регионах.



Мне первая Colin McRae Rally на К6-3 500+ в максимальном для игры 800х600 в плане производительности понравилась на TNT больше, чем на Savage4. Для плавных 1024х768 на Savage4 придется запускать что-то еще более простое, и то если игра будет поддерживать такое разрешение.

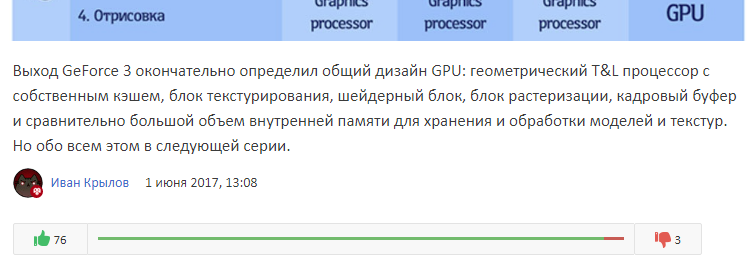

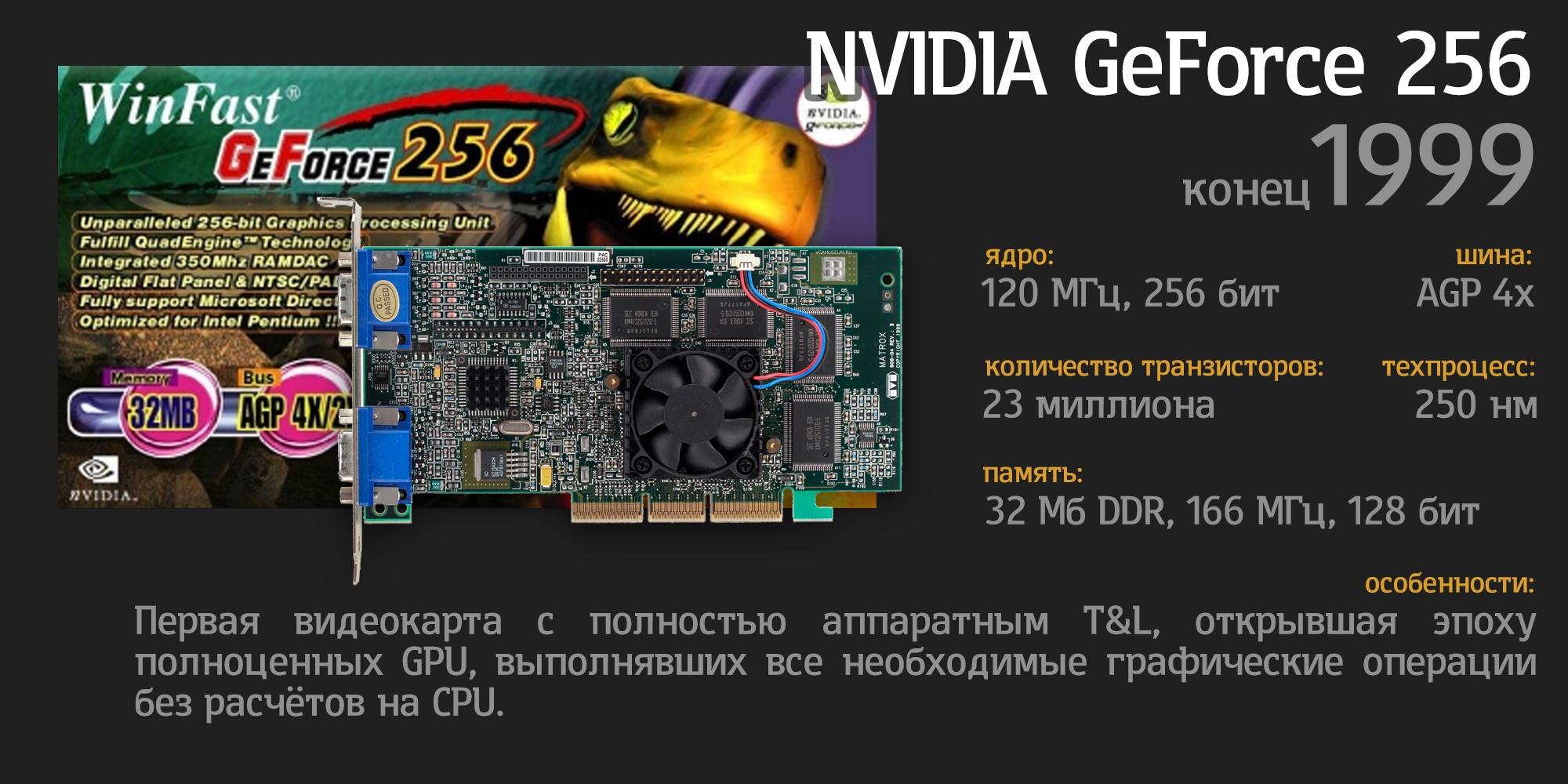

Там вообще перл на перле. Чего только стоит следующее: «Стоила такая сборка от $1900 до $2500» — это про Voodoo² SLI. Учитывая, что 12-мегабайтная Voodoo² стоила на старте около 300$.



Сравнение производительности видеокарт Radeon 9100, Radeon 9250 и Radeon 9600 Pro EZ в игре Serious Sam: The First Encounter (Gold Edition).
Radeon 9100 64 Мб от Yuan, шина 128-бит, 4 конвейера, по 2 TMU в каждом, частоты 250/400 МГц (частота памяти занижена, у полноценных карт - 500 МГц).
Radeon 9250 128 Мб, шина 128-бит, 4 конвейера, по 1 TMU в каждом, частоты 240/400 МГц.
Radeon 9600 Pro EZ 256 Мб, шина 128-бит, 4 конвейера, по 1 TMU в каждом, частоты 400/400 МГц (частота чипа как у полноценной 9600 Pro, частота памяти как у обычной 9600).

Pentium 4 3 ГГц/1M/800 HT, i865G, WinXP. Настройки в игре: OpenGL, 1024x768x32, Quality. Звук отключён.

Первые две строчки с результатами принадлежат Radeon 9100 (Catalyst 6.5), вторые две строчки - Radeon 9250 (Catalyst 6.2), третьи две строчки - Radeon 9600 Pro EZ (Catalyst 6.2, если не указано иное).

AF off
auto-demo0003.dem "Memphis Suburbs"
Originally recorded: 5619 frames in 47.0 seconds => 119.7 FPS average.
Without excessive peaks: 5470 frames in 44.8 seconds => 122.1 FPS average.
Originally recorded: 5548 frames in 47.0 seconds => 118.2 FPS average.
Without excessive peaks: 5416 frames in 45.0 seconds => 120.4 FPS average.
Originally recorded: 6598 frames in 47.0 seconds => 140.5 FPS average.
Without excessive peaks: 6387 frames in 44.5 seconds => 143.5 FPS average.

auto-demo0002.dem "Dunes"
Originally recorded: 13426 frames in 90.2 seconds => 148.8 FPS average.
Without excessive peaks: 12853 frames in 83.7 seconds => 153.5 FPS average.
Originally recorded: 13237 frames in 90.2 seconds => 146.7 FPS average.
Without excessive peaks: 12664 frames in 83.8 seconds => 151.1 FPS average.
Originally recorded: 15185 frames in 90.2 seconds => 168.3 FPS average.
Without excessive peaks: 14571 frames in 84.5 seconds => 172.5 FPS average.

auto-demo0001.dem "Alley Of The Sphinxes"
Originally recorded: 15728 frames in 103.1 seconds => 152.5 FPS average.
Without excessive peaks: 15273 frames in 97.9 seconds => 156.0 FPS average.
Originally recorded: 15583 frames in 103.1 seconds => 151.1 FPS average.
Without excessive peaks: 15206 frames in 98.8 seconds => 153.9 FPS average.
Originally recorded: 17296 frames in 103.1 seconds => 167.7 FPS average.
Without excessive peaks: 17047 frames in 100.5 seconds => 169.7 FPS average.

Recorded00.dem
Originally recorded: 4704 frames in 48.0 seconds => 98.0 FPS average.
Without excessive peaks: 4700 frames in 47.9 seconds => 98.1 FPS average.
Originally recorded: 4634 frames in 48.0 seconds => 96.5 FPS average.
Without excessive peaks: 4595 frames in 47.4 seconds => 96.9 FPS average.
Originally recorded: 4786 frames in 48.0 seconds => 99.7 FPS average.
Without excessive peaks: 4778 frames in 47.8 seconds => 99.9 FPS average.

Recorded01.dem
Originally recorded: 3178 frames in 41.6 seconds => 76.4 FPS average.
Without excessive peaks: 3119 frames in 40.5 seconds => 77.0 FPS average.
Originally recorded: 2914 frames in 41.6 seconds => 70.0 FPS average.
Without excessive peaks: 2869 frames in 40.7 seconds => 70.5 FPS average.
Originally recorded: 4390 frames in 41.6 seconds => 105.5 FPS average.
Without excessive peaks: 4289 frames in 40.4 seconds => 106.1 FPS average.

Recorded08.dem
Originally recorded: 2012 frames in 17.0 seconds => 118.6 FPS average.
Without excessive peaks: 2009 frames in 16.9 seconds => 119.0 FPS average.
Originally recorded: 1992 frames in 17.0 seconds => 117.4 FPS average.
Without excessive peaks: 1989 frames in 16.9 seconds => 117.8 FPS average.
Originally recorded: 2030 frames in 17.0 seconds => 119.7 FPS average.
Without excessive peaks: 2027 frames in 16.9 seconds => 120.2 FPS average.

Recorded09.dem
Originally recorded: 1435 frames in 27.4 seconds => 52.3 FPS average.
Without excessive peaks: 1428 frames in 27.2 seconds => 52.5 FPS average.
Originally recorded: 1265 frames in 27.4 seconds => 46.1 FPS average.
Without excessive peaks: 1255 frames in 27.1 seconds => 46.3 FPS average.
Originally recorded: 1747 frames in 27.4 seconds => 63.7 FPS average.
Without excessive peaks: 1744 frames in 27.3 seconds => 63.9 FPS average.

Recorded10.dem
Originally recorded: 772 frames in 8.8 seconds => 88.1 FPS average.
Without excessive peaks: 771 frames in 8.7 seconds => 88.6 FPS average.
Originally recorded: 703 frames in 8.8 seconds => 80.2 FPS average.
Without excessive peaks: 701 frames in 8.7 seconds => 80.5 FPS average.
Originally recorded: 868 frames in 8.8 seconds => 99.0 FPS average.
Without excessive peaks: 866 frames in 8.7 seconds => 99.7 FPS average.

ValleyOfTheKings_mirror.dem
Originally recorded: 846 frames in 13.1 seconds => 64.5 FPS average.
Without excessive peaks: 836 frames in 12.9 seconds => 64.6 FPS average.
Originally recorded: 863 frames in 13.1 seconds => 65.8 FPS average.
Without excessive peaks: 852 frames in 12.9 seconds => 65.9 FPS average.
Originally recorded: 1303 frames in 13.1 seconds => 99.4 FPS average. (результат на Catalyst 5.4)
Without excessive peaks: 1289 frames in 12.9 seconds => 99.7 FPS average.

AF 16x
auto-demo0003.dem "Memphis Suburbs"
Originally recorded: 4424 frames in 47.0 seconds => 94.2 FPS average.
Without excessive peaks: 4344 frames in 45.3 seconds => 95.9 FPS average.
Originally recorded: 4357 frames in 47.0 seconds => 92.8 FPS average.
Without excessive peaks: 4238 frames in 45.0 seconds => 94.1 FPS average.
Originally recorded: 5150 frames in 47.0 seconds => 109.7 FPS average.
Without excessive peaks: 5075 frames in 45.5 seconds => 111.6 FPS average.

auto-demo0002.dem "Dunes"
Originally recorded: 8817 frames in 90.2 seconds => 97.7 FPS average.
Without excessive peaks: 8408 frames in 84.3 seconds => 99.7 FPS average.
Originally recorded: 9418 frames in 90.2 seconds => 104.4 FPS average.
Without excessive peaks: 9023 frames in 84.9 seconds => 106.3 FPS average.
Originally recorded: 9327 frames in 90.2 seconds => 103.4 FPS average. (результат на Catalyst 5.4)
Without excessive peaks: 8861 frames in 84.7 seconds => 104.6 FPS average.

auto-demo0001.dem "Alley Of The Sphinxes"
Originally recorded: 11787 frames in 103.1 seconds => 114.3 FPS average.
Without excessive peaks: 11441 frames in 98.4 seconds => 116.2 FPS average.
Originally recorded: 12195 frames in 103.1 seconds => 118.3 FPS average.
Without excessive peaks: 11834 frames in 98.5 seconds => 120.2 FPS average.
Originally recorded: 11259 frames in 103.1 seconds => 109.2 FPS average.
Without excessive peaks: 10995 frames in 100.0 seconds => 110.0 FPS average.

Recorded00.dem
Originally recorded: 4813 frames in 48.0 seconds => 100.2 FPS average.
Without excessive peaks: 4810 frames in 47.9 seconds => 100.4 FPS average.
Originally recorded: 4507 frames in 48.0 seconds => 93.9 FPS average.
Without excessive peaks: 4467 frames in 47.3 seconds => 94.4 FPS average.
Originally recorded: 4689 frames in 48.0 seconds => 97.7 FPS average. (результат на Catalyst 5.4)
Without excessive peaks: 4675 frames in 47.7 seconds => 97.9 FPS average.

Recorded01.dem
Originally recorded: 3041 frames in 41.6 seconds => 73.1 FPS average.
Without excessive peaks: 2992 frames in 40.7 seconds => 73.4 FPS average.
Originally recorded: 2708 frames in 41.6 seconds => 65.1 FPS average.
Without excessive peaks: 2665 frames in 40.7 seconds => 65.4 FPS average.
Originally recorded: 3508 frames in 41.6 seconds => 84.3 FPS average.
Without excessive peaks: 3442 frames in 40.7 seconds => 84.6 FPS average.

Recorded08.dem
Originally recorded: 1672 frames in 17.0 seconds => 98.6 FPS average.
Without excessive peaks: 1670 frames in 16.9 seconds => 98.9 FPS average.
Originally recorded: 1677 frames in 17.0 seconds => 98.9 FPS average.
Without excessive peaks: 1673 frames in 16.9 seconds => 99.3 FPS average.
Originally recorded: 1509 frames in 17.0 seconds => 88.9 FPS average.
Without excessive peaks: 1507 frames in 16.9 seconds => 89.2 FPS average.

Recorded09.dem
Originally recorded: 1168 frames in 27.4 seconds => 42.6 FPS average.
Without excessive peaks: 1163 frames in 27.2 seconds => 42.7 FPS average.
Originally recorded: 1119 frames in 27.4 seconds => 40.8 FPS average.
Without excessive peaks: 1113 frames in 27.2 seconds => 40.9 FPS average.
Originally recorded: 1325 frames in 27.4 seconds => 48.3 FPS average.
Without excessive peaks: 1324 frames in 27.3 seconds => 48.4 FPS average.

Recorded10.dem
Originally recorded: 583 frames in 8.8 seconds => 66.5 FPS average.
Without excessive peaks: 581 frames in 8.7 seconds => 66.8 FPS average.
Originally recorded: 559 frames in 8.8 seconds => 63.7 FPS average.
Without excessive peaks: 555 frames in 8.7 seconds => 64.0 FPS average.
Originally recorded: 539 frames in 8.8 seconds => 61.4 FPS average.
Without excessive peaks: 535 frames in 8.7 seconds => 61.7 FPS average.

ValleyOfTheKings_mirror.dem
Originally recorded: 845 frames in 13.1 seconds => 64.4 FPS average.
Without excessive peaks: 836 frames in 13.0 seconds => 64.5 FPS average.
Originally recorded: 853 frames in 13.1 seconds => 65.0 FPS average.
Without excessive peaks: 840 frames in 12.8 seconds => 65.4 FPS average.
Originally recorded: 1166 frames in 13.1 seconds => 88.9 FPS average. (результат на Catalyst 5.4)
Without excessive peaks: 1151 frames in 12.9 seconds => 89.2 FPS average.

Из-за особенностей архитектуры, у Radeon до 9250 (включительно) при включении анизотропной фильтрации отключается трилинейная.

Самозаписанные демки:
Soft - Сравнение производительности драйверов к старым видеокартам
Старые видеокарты



Я больше с этого поржал. Из серии - "на внимательность".



Ну так вы на фамилию автора гляньте Баснописец!



А если нажать на неё же



Там же уже другое поколение
нашел
VGA Legacy MKIII - S3 Savage/IX
